DevOps Primer for Tudat

This guide serves as an introduction to DevOps concepts and tools for the Tudat project. It’s aimed at developers and users new to DevOps, offering a basic understanding of essential tools and practices in the development operations process.

Feedstocks

Conda-smithy is a tool for creating and maintaining conda packages, and is maintained by the conda-forge community. It automates the process of creating and maintaining a feedstock repository for a package, which can then be used to build and upload the package to Anaconda Cloud. Packages on Anaconda Cloud can then be installed using conda install. For all repositories discussed in the GitHub in the Tudat Ecosystem section, there is a corresponding feedstock repository on the Tudat Team organization on GitHub. For example, the feedstock repository for the tudatpy package is found as tudatpy-feedstock, as seen in the following screenshot.

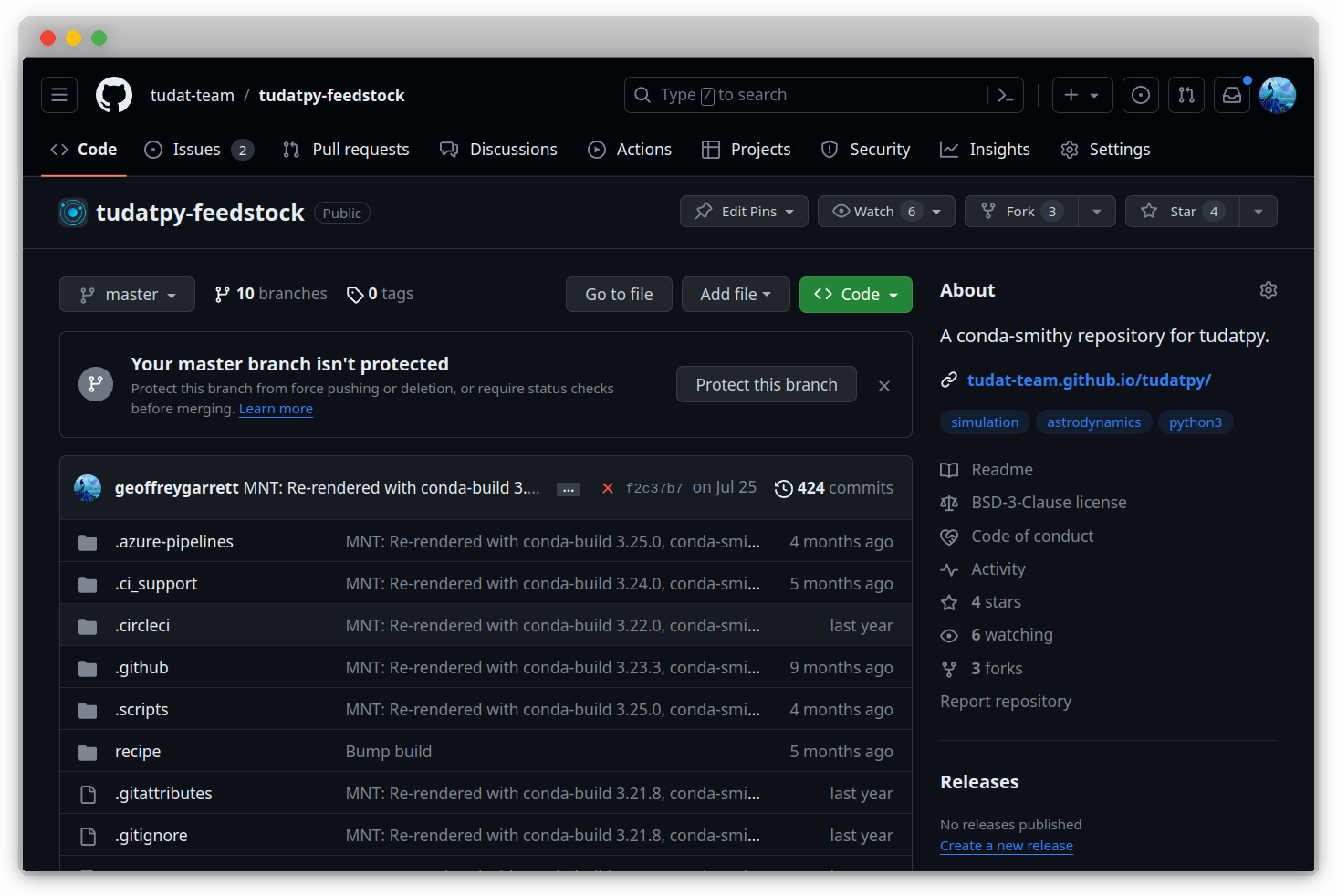

Feedstock repositories on GitHub

The primary purpose of feedstock repositories is to build and upload packages to Anaconda Cloud. The feedstock repository contains a recipe for building the package, which is used by Conda-smithy to build the package for different platforms. The relevant components of a feedstock repository are detailed in the following table.

File/Folder

Description

meta.yaml

Contains metadata for the package, used by Conda-smithy to create the recipe for building the package.

conda-forge/

Folder created by Conda-smithy, containing the recipe for building the package.

recipe/

Contains the recipe for building the package; a folder created by Conda-smithy.

.ci_support/

Contains CI/CD configuration files for the package, created by Conda-smithy.

.github/

Contains GitHub configuration files for the package, created by Conda-smithy.

Feedstock Automation 🔧

The following mechanism is maintained by Conda-forge to build and upload packages to Anaconda Cloud. It is defined in the .github/workflows/ folder of the feedstock repository. The .github/workflows/ folder contains

%%{ init : {"theme": "dark"} }%% sequenceDiagram participant G as 🌐 GitHub participant A as ⚙️ Azure Pipelines Note over G: Push to Feedstock G ->> A: Trigger Build activate A Note over A: Build in Progress alt A -->> G: ✅ Build Succeeded else A --x G: ❌ Build Failed end deactivate A %% Note over G: Initiates Builds %% Note over A: Executes Build Operations
%%{ init : {"theme": "light"} }%% sequenceDiagram participant G as 🌐 GitHub participant A as ⚙️ Azure Pipelines Note over G: Push to Feedstock G ->> A: Trigger Build activate A Note over A: Build in Progress alt A -->> G: ✅ Build Succeeded else A --x G: ❌ Build Failed end deactivate A %% Note over G: Initiates Builds %% Note over A: Executes Build Operations

Note

The feedstock repository is automatically created by Conda-smithy when the package is uploaded to Anaconda Cloud. The feedstock repository contains a recipe for building the package, which is used by Conda-smithy to build the package for different platforms. The feedstock repository also contains a meta.yaml file, which contains the metadata for the package. This file is used by Conda-smithy to create the recipe for building the package.

Environment Variables

Environment Variables are crucial for storing configuration settings and other data. This section covers setting environment variables in different operating systems and in Python.

Access Tokens

Access Tokens are essential for secure authentication. Learn about generating and managing access tokens for various services, and setting environment variables for these tokens.

Version Control

Version Control is vital for managing changes in the codebase. This part provides an overview of Git and the essentials of repository management, commits, and collaborative features like pull requests.

Continuous Integration and Deployment

Continuous Integration and Deployment streamlines development processes. This section delves into setting up CI/CD pipelines, automated testing, and deployment practices.

Todo

  • Expand on setting up environment variables in CI/CD pipelines.

  • Include a case study on integrating Git with CI/CD tools.

  • Discuss secure management of access tokens in automated systems.

Conclusion

The DevOps Primer covers the fundamentals of environment variables, access tokens, version control, and CI/CD in software development. It emphasizes secure, efficient, and streamlined development practices, integral to modern software engineering.

%%{ init : {"theme": "dark"} }%% sequenceDiagram participant G as 🌐 GitHub participant A as ⚙️ Azure Pipelines participant AC as ☁️ Anaconda Cloud %% Process Flow G ->> A: Trigger Build activate A Note right of A: Build in Progress alt Build Successful A ->> AC: Upload Package activate AC Note right of AC: Uploading Package AC -->> G: Upload Successful deactivate AC else Build Failed A --x G: Build Failed end deactivate A %% Monitoring Loop (Simplified) opt Regular Monitoring loop Every Hour G ->> A: Request Status A -->> G: Build Status end end %% Annotations Note over G: Initiates Builds and Monitors Note over A: Executes and Reports Build Status Note over AC: Manages and Hosts Package Uploads
%%{ init : {"theme": "light"} }%% sequenceDiagram participant G as 🌐 GitHub participant A as ⚙️ Azure Pipelines participant AC as ☁️ Anaconda Cloud %% Process Flow G ->> A: Trigger Build activate A Note right of A: Build in Progress alt Build Successful A ->> AC: Upload Package activate AC Note right of AC: Uploading Package AC -->> G: Upload Successful deactivate AC else Build Failed A --x G: Build Failed end deactivate A %% Monitoring Loop (Simplified) opt Regular Monitoring loop Every Hour G ->> A: Request Status A -->> G: Build Status end end %% Annotations Note over G: Initiates Builds and Monitors Note over A: Executes and Reports Build Status Note over AC: Manages and Hosts Package Uploads

Todo

  • Add links to advanced tutorials and workshops.

  • Include interviews with DevOps experts discussing best practices.

  • Consider a section on DevOps in cloud computing environments.

Todo

  • Add Azure operations related to Conda-forge feedstocks.

  • Describe what happens when a feedstock is pushed to a repository:

    • What is triggered on Azure?

    • What are the relevant files?

    • What is the process? (Include a diagram)

    • Link to Conda-smithy documentation.
